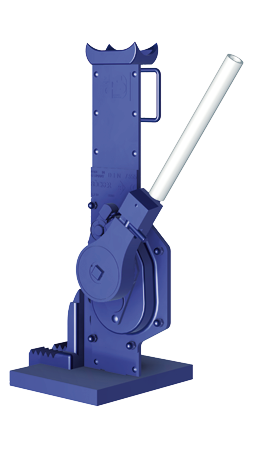

Toothed rack and pinion jacks | Machine lifting tool with extra deep claw - Typ 14

... available with safetyand safety ratchet crank Druckrollen-Ratschen-Sicherheitskurbel

Maschinenheber
tested and manufactured to DIN 7355:1970
low net weight
safe handling in small rooms
250 mm hub
claw can be lowered until the ground

The toothed rack | Machine lifting tool – extra deep claw was developed of
the steel winch according to DIN 7355 with hoisting housing. By the claw which can be lowered up to the ground, the possible applications of this toothed rack is increased.

You have special requests? Call our experienced Service team under phone 02191 576001 or write us an E-Mail.




    Article-no. Lifting force Lift (H) Sizes in mm Weight
    in t in mm A B B1 C C1 C2 D E E1 E2 E3 K in kg
    toothed gear rack – extra deep claw with safety ratched crank (Raku)
    214.015-0250.01 1,5 250 450 80 40 150 200 175 60 75 20 30 130 316 16
    214.030-0250.01 3,0 250 450 85 55 150 200 175 60 75 20 30 130 316 18
    214.050-0250.01 5,0 250 450 95 55 150 200 175 60 75 20 35 130 316 20
    toothed gear rack – extra deep claw with safety spring ratchet crank (DRK)
    314.015-0250.01 1,5 250 450 80 40 150 200 175 60 75 20 30 130 316 16
    314.030-0250.01 3,0 250 450 85 55 150 200 175 60 75 20 30 130 316 18
    314.050-0250.01 5,0 250 450 95 55 150 200 175 60 75 20 35 130 316 20
