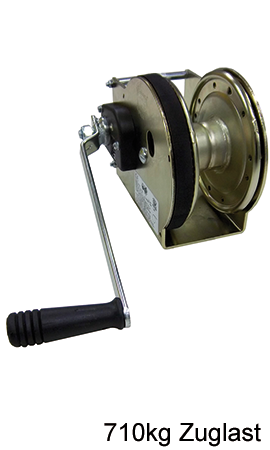

Self-braking lifting and traction cable winches

	self-locking
	friction brake
	with hand crank
	all-steel casing
	screw wheel with protective plate
	belt strap till 25mm broad
	cable
	TÜV proved

article-no.		530.020-0003	530.030-0004	530.040-0006	530.060-0008	530.080-0012
Lifting force in kg and cable position		80/190	190/340	240/500	270/650	490/900
tension in kg or cable position		220	480	640	710	1290
barrel Ø in mm		30	40	50	60	76
barrel capacity		3 x 8,0	4 x 10,0	5 x 12,0	6x 19,0	7 x 12,0
	A-0	125	95	160	200	210
	A-1	95	95	125	170	170
	A-2	80	80	118	140	140
	A-3	125		154	177	200
	A-4	185	185	227,5	270	270
	A-5		65	82,5	82,5	95
	A-6		45	49,5	49,5	60
	A-7	17	23	16,5	16,5	22
	A-8	15	15	20	20	14/20
	A-9	28		27	25	25
	A-10		73	46	15	39
	A-11		77	74	40	80
	A-12	73	102	115	78	110
	A-13	80	112	140	117	185
	A-14	50	90	99	99	117
	A-15	68	110	117	117	130
	A-16	102	142	151	155	170
	A-17	200	245	250	250	270
	A-18	160	160	200	245	245
Weight in kg		2,2	2,7	3,7	5,5	7,4
