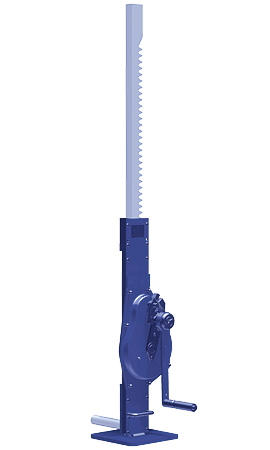

Container winch - Typ 07

... available with safety crank

Unser Stockwinde mit Sicherheitskurbel 101.015-0350
tested and manufactured to DIN 7355:1970
strengthened winch shaft
foot plate 200 x 200 mm
locating pin Ø 30 mm in basic version
further carrying 40 x x40 mm / 50 x 50 mm square tube
Length of 250 – 400mm possible


The container winch is an essential help in forwarding companies and showman trade. By the construction of the winch we offer you high safety and easy handling when raising containers and market stands as well as when removing from the trailer.

For further Lengths please ask our competent team. We like to advise you by phone under the number 02191 57600-1 or feel free to write us an E-Mail.



    Article-no. Lifting force Lift (H) Sizes in mm Weight
    in t in mm A C C1 C2 DØ E E1 K in kg
    winch with safety crank 3 t
    107.030-0900.01 3,0 900 1300 200 200 290-540 30 130 250 - 400 250 31
    winch with safety crank 5 t
    107.050-0900.01 5,0 900 1400 200 200 400-550 30 130 250 - 400 250 48
