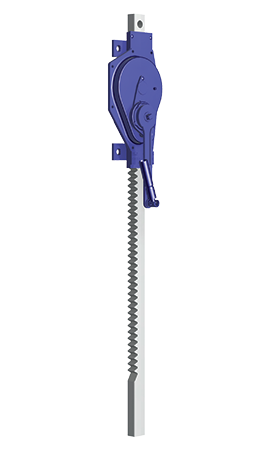

Container - toothed lifting jack - Typ 13

... available with safety and safety spring crank

Unsere Container-Zahnstangewinde
tested and manufactured to DIN 7355:1970
fixing iron
suitable for tension and pressure
automatic mechanical brake

The container winches are equipped on their back side with fixing irons. Distance drillings can be manufactured exactly after your measures. All construction parts of this container – toothed lifting jacks are produced out of steel.

The container toothed lifting jacks are equipped with safety cranks. According to latest regulations of the professional association they can be delivered with safety spring cranks (right and left side locking). By the use of the safety spring crank (DSK) a securing of the crank is dropped during the container transport.

You have further questions or need special requests ? Call us under the phone number 02191 576001 or write an E-Mail to us.




    Article-no. Lifting force Lift (H) Sizes in mm Weight
    in t in mm A B B1 C C1 C2 C3 D D1 E E2 K in kg
    winch with safety crank (Siku)
    113.030-0800.01 3 800 1250 10 50 160 120 355 305 22 17 30 125 250 20
    113.050-0800.01 5 800 1250 10 50 160 120 355 305 22 17 30 125 250 24
    winch with safety spring crank (DSK)
    313.030-0800.01 3 800 1250 10 50 160 120 355 305 22 17 30 125 250 20
    313.050-0800.01 5 800 1250 10 50 160 120 355 305 22 17 30 125 250 24
    To send you an offer as soon as possible, please fill out the form:

    Details for the requested winch:
    Lifting force in t
    Const. height in mm
    Lift height in mm
    Requested crank
    Quantity
    Lifting jack in
    tension pressure
    Lengthening spindle at the crank arm
    yes no
    If „yes“, please specify the requested length here.
    Length in mm
