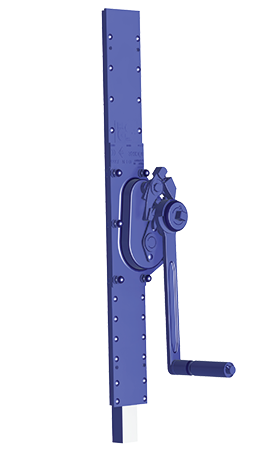

Steel winch gear for opening of container lids - Typ 12

... available with safety, safety ratchet crank and safety spring crank

Unser Stockwinde mit Sicherheitskurbel 101.015-0350
tested and manufactured to DIN 7355:1970
installation for every situation possible
suitable for tension or pressure
automatic mechanical brake

The installation of our steel winch gear is possible for every situation. This can be used for all sorts of application functions as a component. The lifting height and the gear rack Length are adjusted according to the construction requirements. The steel winch gears are extremely robust and both suitable for tension and pressure.

You still have questions or special requests ? Take your chance and call our experienced Service team under the number 02191 576001 or write us an E-Mail.

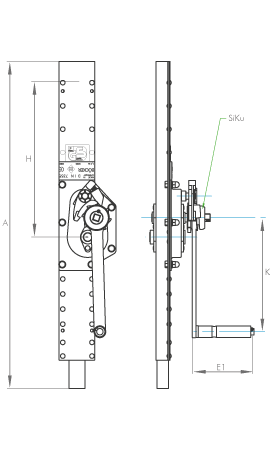

    Article-no. Lifting force Lift (H) Sizes in mm Weight
    in t in mm A E1 K in kg
    winch with safety crank (Siku)
    112.015-0350.01 1,5 350 710 130 250 11
    112.030-0350.01 3,0 350 710 130 250 17
    112.050-0350.01 5,0 350 710 130 250 24
    112.100-0400.01 10,0 400 770 250 300 38
    winch with safety ratched crank (Raku)
    212.015-0350.01 1,5 350 710 130 250 11
    212.030-0350.01 3,0 350 710 130 250 17
    212.050-0350.01 5,0 350 710 130 250 24
    212.100-0400.01 10,0 400 770 250 300 38
    winch with safety spring crank (DSK)
    312.015-0350.51 1,5 350 710 130 250 11
    312.030-0350.51 3,0 350 710 130 250 17
    312.050-0350.51 5,0 350 710 130 250 24
