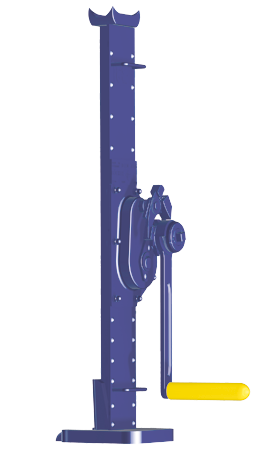

Toothed lifting jack – extra deep claw - Typ 14

... available with safetyand safety ratchet crank

Maschinenheber
tested and manufactured to DIN 7355:1970
automatic mechanical brake
crank rotating 360°
crank handle fold away 90°
350 mm lifting height
claw can be lowered until the ground

The steel winch – extra deep claw was developed from the steel winch according to DIN 7355 with hoisting housing. By the claw which can be lowered up to the ground, the possible applications of these winches are increased. This steel winch is robustly and therefore very well suitable for the continuous operation.

You have special requests ? Call our experienced Service team under phone 02191 576001 or write us an E-Mail.



    Article-no. Lifting force Lift (H) Sizes in mm Weight
    in t in mm A B B1 C C1 C2 D E E1 K in kg
    toothed lifting jack – extra deep claw with safety crank (Siku)
    114.030-0350 3,0 350 725 85 20 130 140 155 65 70 20 250 18
    toothed lifting jack – extra deep claw with safety ratchet crank (Raku)
    214.030-0350 3,0 350 725 85 20 130 140 155 65 70 20 250 18
