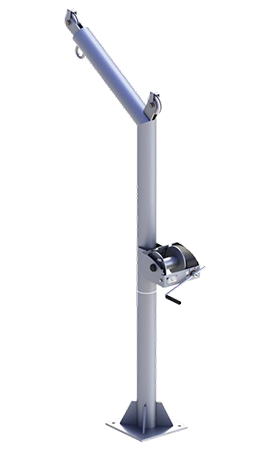

Swivel David with cable winch

Hubwinde

Jib part rotates 360 degrees over a built in pivot bearing
extendible jib
versatile use
easy to transport
3 parts structure, each under 25 kg
easy to install and to remove, by Snap-On-System
material: Aluminium
equipped with worm gear winch

Our Swivel David is made from aluminum and the worm gear winch from stainless steel. Because of this the dead load is very low With the snap-on-system the Swivel David is easy to fix, no additional tools are needed.This rotary crane can be used versatilely , his jib can be pulled out from 250 mm up to 325 mm and is rotatable for360°.



    Article-no. Capacity Crank force Rope-path in ea crank max. Rope- Weight
    jib retracted jib distended in 1st rope-layer Turn in 1st rope-layer rope-device dia-meter in kg
    transportable rotary crane with rotatable jib and worm gear winch
    532.030-0285.01 600 kg 285 kg 12 daN 21 mm 36 m 8 mm 60
