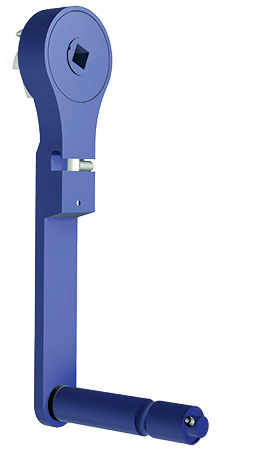

Safety ratchet crank

Safety ratchet crank

integrated friction disk brake
Double safety catch with spring
Brass friction pads
lacquered or galvanized execution
14 mm or 17 mm square
250 mm crank arm for 1,5 – 5 t jacks
Nominal: 70 Nm
300 mm crank arm for 10 t jacks
Nominal: 168 Nm


The safety ratchet crank will be used by working in very confined space because the crank arm doesn´t have to involve 360°. The up and down motion can be raised and lowered the load. The setting takes place by shifting the leverage at the crank arm. .



    Article-no. Sizes in mm Weight
    A B C N1 O in kg
    Safety ratchet crank for steel winches 1,5 t
    006.015-0018 250 125 67 n25 14 1,8
    006.015-0018.10 250 125 67 n25 17 1,8
    Safety ratchet crank for steel winches 10 t
    006.100-0018 300 125 67 n25 17 3,3
    Safety ratchet crank with friction pads – galvanized execution – for steel winches 1,5t – 5 t
    006.015-9918 250 125 67 n25 14 1,8
    Safety ratchet crank with friction pads – galvanized execution – for steel winches 10 t
    006.100-9918 300 125 67 n25 17 3,3
