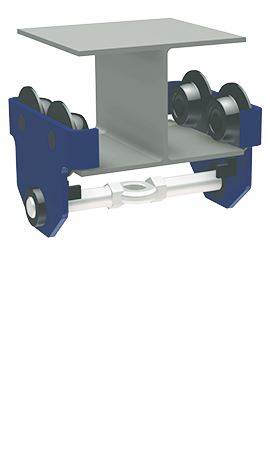

Plain trolley

Einschienen-Rollkatze

ball stored track rollers
mechanical pushing forward
quick and easy installation
solid and robust


The bolt of this Plain trolley has a fine thread. So the undercarriage can fast and simply be adapted to the desired flange breadth. No fitting plates are required. The Plain trolley is very well suitable for changing sites of usage.

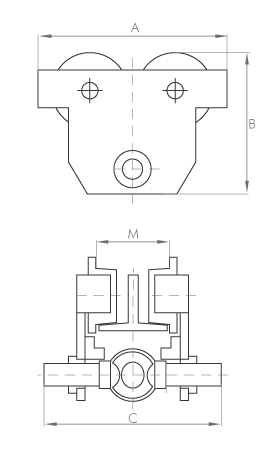

    Article-Nr. Lifting force with curve Flange breadth M in mm Sizes in mm Weight
    in t radius min max A B C F in kg
    plain trolley
    515.005-0050 0,5 0,9 50 220 225 176,5 292 -3 8
    515.010-0050 1,0 1,0 50 220 252 188,0 300 -3 11
    515.020-0066 2,0 1,2 66 220 300 226,0 310 -3 18
