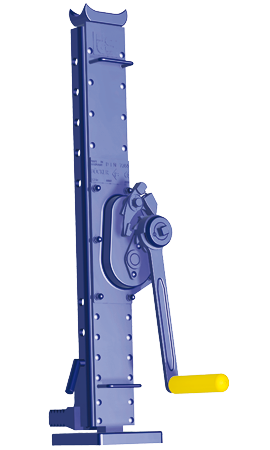

Steel lifting jack with adjustable claw - Typ 03

... available with safety or safety ratchet crank

Stockwinde mit verstellbarer Klaue
tested and manufactured to DIN 7355:1970
crank rotating 360°
crank handle fold away 90°
solid floor plate

The different work levels can be adjusted over the movable claw. A faster cubic capacity usage is possible. The movable claw is drop-forged, has 2 fixture bores and offers in total 14 adjustmant facilities. She is safeguarded with front rail.

Our steel winch with adjustable claw corresponds with all quality characteristics of our standard steel winch according to DIN 7355.

Certainly we manufacture custom-made products. Feel free to call us or send an E-Mail.




    Article-no. Lifting force Crank force Hub (H) Sizes in mm Weight
    in t in daN in mm A min A max B B1 C C1 D D1 K in kg
    winch with safety crank (Siku)
    103.015-0350 1,5 28 350 725 1075 80 40 130 140 65 50 250 19
    103.030-0350 3,0 28 350 725 1075 85 55 130 140 65 55 250 26
    103.050-0350 5,0 28 350 725 1075 95 55 150 170 75 65 250 34
    103.100-0400 10,0 56 400 800 1200 125 65 150 170 85 70 300 51
    winch with safety ratched crank (Raku)
    203.015-0350 1,5 28 350 725 1075 80 40 130 140 65 50 250 19
    203.030-0350 3,0 28 350 725 1075 85 55 130 140 65 55 250 26
    203.050-0350 5,0 28 350 725 1075 95 55 150 170 75 65 250 34
    203.100-0400 10,0 56 400 800 1200 125 65 150 170 85 70 300 51
