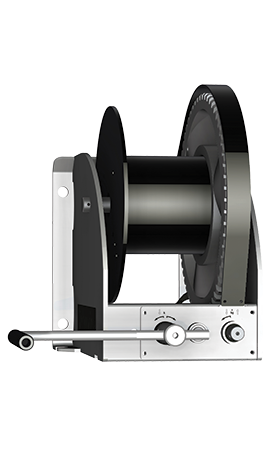

Worm gear winch

	load pressure brake
	hand crank adjustable in the crank radius
	all-steel construction
	screw wheel with protective plate
	construction after the latest UVV BGV D8 and DIN 15020
	maintenance-free bearing

The worm gear winch ist available starting 2000 kg tensile load with 2 lifting-velocities. Further achievements:

hoisting drum with seperating seam
galvanised

If you have special requests, our professionals will be find the right solution for safety lift your weights. If you have any questions do not hesitate to contact our serviceteam under the following number 02191/57600 1 or write an E-Mail.

Sizes
Request
Film

article-no.		540.025-0160.01	540.050-0190.1	540.100-0240.01	540.200-0312.01	540.300-0376.01	540.500-0437.01
Capacity in kg		250	500	1000	2000	3000	5000
drum-capacity in m		59	77	55	46	52	40
needed robe Ø in mm		5	6	09	13	16	20
rotation of the crank in mm		17	20	13	12/6	11/6	ca. 12/4
	A	238	269	302	410	436	436
	B	145	160	195	310	365	425
	C	100	115	141	196	251	316
	D	192	223	254	360	386	386
	G	106	107	110	137	137	137
	H	102	131	160	176	204	200
	J	48	70	102	133	165	219
	K	14	14	17	25	25	25
	L	160	190	240	312	376	437
	M	191	221	266	383	443	495
	N	15	15	15	45	47	60
	O	354	384	429
	P	280	325	350	380	380	380
	R	171	192	264	420	527	604
	S	130	130	130	220	220	220
Weight in kg		13	16	29	60	78	117

Requested tensile load in kg
Requested wire length in m
Hook clip
Quantity
Optional equipment
