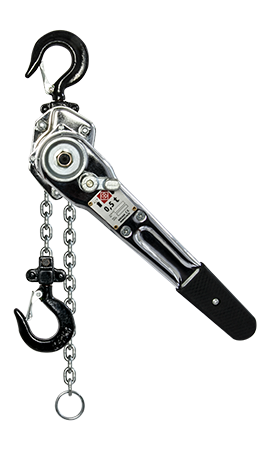

Lever hoists
... developped for industrial facilities for lifting and pulling
|
|
 |
built to CE guidelines |
|
galvanized surface |
|
durable and resistant to influences of weather |
|
new ergonomic design |
|
equipped by standard with a 1,5m galvanised chain, to EN 818-7RT |
|
chain is deliverable in every Length |
|
little effort |
Our Lever hoists are developped for industrial applications for lifting and pulling. The ergonomic design and the built-in gliding-surface bearings offer you working under little effort.
|
|
| Article-no. |
Lifting force |
Hub |
Number oft he |
Measure |
Lever pressure at |
Sizes in mm |
Weight |
|
in t |
in m |
parts of chain |
of chain |
full-load in N |
A |
B |
C |
D |
E |
H |
L |
in kg |
| lever hoist |
500.025-1500
|
0,25 |
1,5 |
1 |
4 x 12 |
282 |
92 |
71 |
70 |
31,0 |
20 |
245 |
158 |
2,1 |
| 500.050-1500 |
0,50 |
1,5 |
1 |
5 x 15 |
248 |
143 |
86 |
118 |
31,5 |
24 |
300 |
253 |
5,3 |
| 500.075-1500 |
0,75 |
1,5 |
1 |
5,6 x 17,1 |
265 |
148 |
87 |
132 |
35,5 |
27 |
330 |
278 |
6,5 |
| 500.150-1500 |
1,50 |
1,5 |
1 |
7,1 x 21 |
295 |
173 |
99 |
145 |
42,5 |
33,5 |
400 |
378 |
10,5 |
| 500.300-1500 |
3,00 |
1,5 |
1 |
10 x 30 |
335 |
200 |
112 |
199 |
50,0 |
40 |
520 |
388 |
22,0 |
| 500.600-1500 |
6,00 |
1,5 |
2 |
10 x 30 |
370 |
200 |
112 |
230 |
53,0 |
42,5 |
640 |
418 |
31,0 |
| lever hoist 500 kg with short arm |
| 501.050-1500 |
0,50 |
1,5 |
1 |
4 x 12 |
- |
117 |
80 |
95 |
35 |
- |
285 |
170 |
3,4 |
-
-
