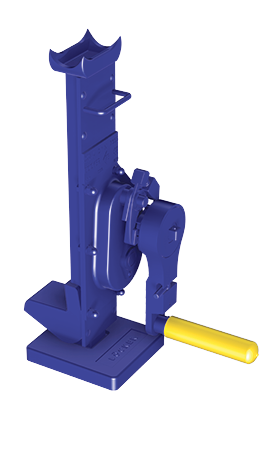

Steel Winch – reduced overall height - Typ 02

... available with safety crank or safety ratchet crank

Stockwinde mit verkürzter Construction height 101.015-0350
tested and manufactured to DIN 7355:1970
automatic mechanical brake
crank rotating 360°
crank handle fold away 90°
solid floor plate


The reduced overall height increases the application spectrum extensive. At the use of the steel winch in small rooms, the RAKU crank can be operated by up and down movement. For a fast and safe transport a carrying handle is fixed at the case of the winch.

You have special requests ? Call our experienced Service team under phone 02191 576001 or write us an E-Mail.




    Article-no. Lifting force Crank force Hub Dimensions in mm Weight
    in t in daN in mm A min A max B B1 C C1 D D1 K in kg
    winch with safety crank
    102.015-0250 1,5 28 250 550 800 80 40 130 140 60 70 200 11
    102.030-0275 3,0 28 275 570 845 85 55 130 140 65 80 250 18
    102.050-0300 5,0 28 300 600 900 95 55 150 170 70 80 250 24
    102.075-0300 7,5 28 300 625 925 95 55 150 170 70 80 250 26
    102.100-0300 10,0 56 300 650 950 125 65 150 170 80 90 300 38
    winch with safety ratchet crank
    202.015-0250 1,5 28 250 550 800 80 40 130 140 60 70 200 11
    202.030-0275 3,0 28 275 570 845 85 55 130 140 65 80 250 18
    202.050-0300 5,0 28 300 600 900 95 55 150 170 70 80 250 24
    202.075-0300 7,5 28 300 625 925 95 55 150 170 70 80 250 26
    202.100-0300 10,0 56 300 650 950 125 65 150 170 80 90 300 38
