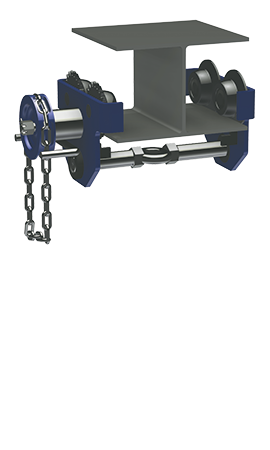

Geared trolley

Einschienen-Rollkatze

ball stored track rollers
mechanical pushing forward
quick and easy installation
solid and robust
3 m track height


The bolt of this trolley has a fine thread. The undercarriage can fast and simply be adapted to the desired flange breadth. No fitting plates are required. The trolley is very well suitable for changing sites of usage.

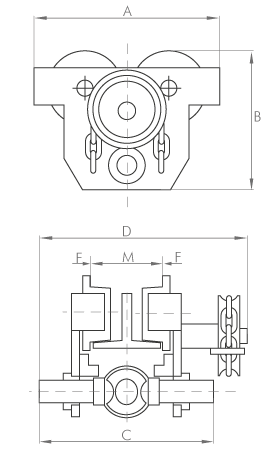

    Article-Nr. Lifting force Smallest curve Flange breadth M in mm Sizes in mm Weight
    in t radius min max A B C D F in kg
    geared trolley
    516.005-0050 0,5 0,9 50 220 225 173 292 292,5 -3 12
    516.010-0050 1,0 1,0 50 220 252 188 300 302,5 -3 16
    516.020-0066 2,0 1,2 66 220 300 226 310 319,5 -3 23
