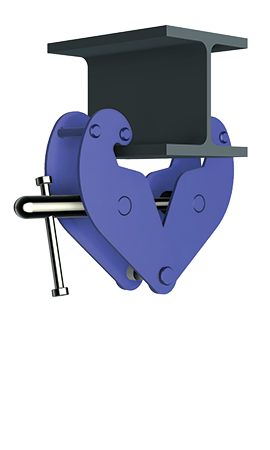

Beam clamp

Trägerklemme

adjustable
self-locking spindle
quick and easy installation
solid and robust
chromed grip
according to EU-Norm
according to european safety standards

With this Beam clamp you can make attack points fast and without tools for hoists, pulleys and much more. Our Beam clamp is exceptionally robust and reliable. By the construction we ensure a simple fastening as well as an absolutely safe seat of the clamp on the strap.

    Article-Nr. Lifting force Flange breadth in mm Sizes in mm Weight
    in t min max A max B min B max C D E F min F max G min H in kg
    beam clamp
    575.010-0020 1 70 245 270 183 375 66 4 210 165 102 25 20 4,5
    575.020-0022 2 70 245 270 183 375 74 6 210 165 102 25 20 5,0
    575.030-0024 3 70 335 365 240 520 103 8 258 225 135 45 22 10,5
