Steel winch according to DIN 7355
- Typ 01

Now available within 24 hours

Steel winch according to DIN 7355 with safety crank-, safety ratchet crank or safety spring crank (DSK) available

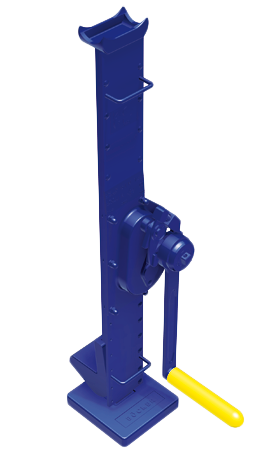

Unser Stockwinde mit Sicherheitskurbel 101.015-0350
tested and manufactured to DIN 7355:1970
automatic mechanical brake
crank rotating 360°
crank handle fold away 90°
solid floor plate

Our steel winches are equipped according to DIN 7355 with hoisting housing, fixed claw, skew geared tooth rack and different cranks. For a fast and safe transport a carrying handle is fixed at the case of the winch. The steel winch is used in the tool and machine trade, building and construction trade, on shipyards in farming and garages.

Of course we produce steel winches in extended construction heights of 800 mm, 900 mm and 1000 mm with a lifting_force from 1,5t to 5,0 t. For further information please contact us under our number 02191-57600-1 or in written form by E-Mail.




    Article-no. Lifting force Crank force Hub (H) Sizes in mm Weight
    in t in daN in mm A min A max B B1 C C1 D D1 K in kg
    Winch with safety crank (Siku)
    101.015-0350 1,5 28 350 725 1075 80 40 130 140 60 70 250 13
    101.030-0350 3,0 28 350 725 1075 85 55 130 140 65 80 250 20
    101.050-0350 5,0 28 350 725 1075 95 55 150 170 70 80 250 27
    101.075-0350 7,5 28 350 725 1075 95 55 150 170 70 80 250 29
    101.100-0400 10,0 56 400 800 1200 125 65 150 170 80 90 300 42
    Winch with safety ratched crank (Raku)
    201.015-0350 1,5 28 350 725 1075 80 40 130 140 60 70 250 13
    201.030-0350 3,0 28 350 725 1075 85 55 130 140 65 80 250 20
    201.050-0350 5,0 28 350 725 1075 95 55 150 170 70 80 250 27
    201.075-0350 7,5 28 350 725 1075 95 55 150 170 70 80 250 29
    201.100-0400 10,0 56 400 800 1200 125 65 150 170 80 90 300 42
    Winch with safety spring crank (DSK)
    301.015-0350 1,5 28 350 725 1075 80 40 130 140 60 70 250 13
    301.030-0350 3,0 28 350 725 1075 85 55 130 140 65 80 250 20
    301.050-0350 5,0 28 350 725 1075 95 55 150 170 70 80 250 27
