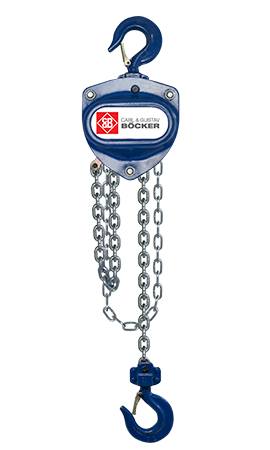

Spur gear hoist

... developped for lifting from weights and industrial facilities

Stirnradflaschenzug
developped and built for industrial facilities
equipped by standard for 3 m lifting height
high-strength galvanically zinc-coated round-bar iron chain to EN 818-7 RT
new ergonomic design
built-in gliding-surface bearings offer you a simple maintenance
rotating, stored carry and lifting hook with hook safeguarding

Our spur gear hoists are developped for lifting from weights and industrial facilities. The ergonomic design and the built-in-gliding-ball-bearings offer you working under little effort.

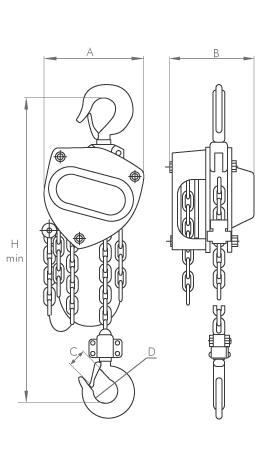

    Article-no. Lifting force Hub Number of the Lever pressure at Measure Sizes in mm Weight
    in t in m parts of chain full-load N of chain A B C D H in kg
    spur gear hoist / hand chain hoist
    509.005-3000 0,5 3 1 240 5x15 148 132 23,0 35 345 11,0
    509.010-3000 1,0 3 1 250 6,3x19,1 172 151 26,0 40 376 12,5
    509.015-3000 1,5 3 1 265 7x21 196 173 29,5 45 442 17,8
    509.020-3000 2,0 3 1 335 8x21 210 175 34,0 50 470 19,5
    509.030-3000 3,0 3 2 290 7x21 230 176 37,5 55 565 29,0
    509.050-3000 5,0 3 2 360 10x30 280 189 41,0 65 688 41,3
