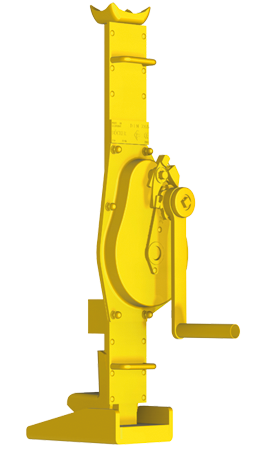

Rail lifting jack - Typ 05

... available in basic and strenghtened version

Stockwinde mit verstellbarer Klaue
produced according to DIN 7355
automatic mechanical brake
crank rotating 360°
crank handle fold away 90°
solid floor plate

Special tool for the use in railway construction. Rail lifting jacks according to DIN 7355 are used for lifting of rails and switches. The robust, yellowy coated steel plate housing guarantees a long working life, even in long-term work. The precise manufactured gears with an optimal translation provide a low effort and better process. The big floor plate guarantees a safe stand also on an uneven underground.



    Article-no. Lifting force Hub (H) Sizes in mm Weight
    in t in mm A B B1 C C1 D E E1 E2 E3 E4 K in kg
    winch in basic version A
    105.030-0350.51 3.0 350 720 85 55 160 220 70 70 50 60 104 130 250 21
    105.050-0350.51 5,0 350 720 95 55 180 250 60 70 50 60 104 130 250 29
    105.100-0400.51 10,0 400 800 125 65 180 250 90 70 50 60 104 250 300 43
    winch in strenghtened version B
    105.030-0350.01 3.0 350 720 85 55 160 220 70 70 50 60 104 130 250 23
    105.050-0350.01 5,0 350 720 95 55 180 250 60 70 50 60 104 130 250 32
    105.100-0400.01 10,0 400 800 125 65 180 250 90 70 50 60 104 250 300 46
