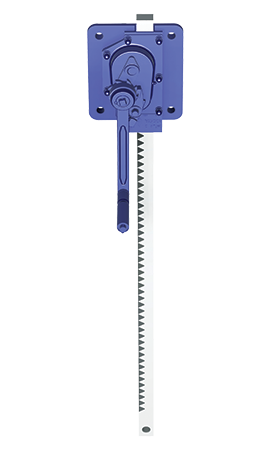

Sluice lifting jack with back plate -
Typ 80

... available with safety, safety ratchet crank and safety spring crank

Schleusenwinde mit Fußwinkel
tested and manufactured to DIN 7355:1970
straight tooth rack
in galvanizes version deliverable
suitable pressure brake

Our Sluice lifting jacks with back plate are used in machine-, container and vehicle manufacturing. She is especially robust.

With her tooth racks in solid material, the spur-gear system with forged gear-wheels and her exactly milled crank- gear racks, rack-and-pinion drives, middle drives, we offer you a very qualitative product which has a long life time and high safety but is especially easy in handling. We can of course deliver sluice winches with coupling element and tube with double drive in a galvanized version or as a sluice winch plant.

Just ask our competent team. We are pleased to advise you by phone under the number 02191 576001 or write an E-Mail to us.



    Article-no. Lifting force Lift (H) Sizes in mm Weight
    in t in mm A B C C1 C2 C3 D D1 E1 K in kg
    sluice lifting jack with safety crank (Siku)
    180.015-0800.01 1,5 800 1150 20 235 185 200 150 18 17 130 250 14
    180.030-0800.01 3 800 1260 30 340 280 260 200 22 21 130 250 24
    180.050-0800.01 5 800 1280 30 365 285 275 205 22 21 130 250 32
    180.100-0800.01 10 800 1405 45 440 360 315 235 25 25 250 300 53
    sluice lifting jack with safety ratchet crank (Raku)
    280.015-0800.01 1,5 800 1150 20 235 185 200 150 18 17 130 250 14
    280.030-0800.01 3 800 1260 30 340 280 260 200 22 21 130 250 24
    280.050-0800.01 5 800 1280 30 365 285 275 205 22 21 130 250 32
    280.100-0800.01 10 800 1405 45 440 360 315 235 25 25 250 300 53
    sluice lifting jack with safety spring crank (DSK)
    380.015-0800.01 1,5 800 1150 20 235 185 200 150 18 17 130 250 14
    380.030-0800.01 3 800 1260 30 340 280 260 200 22 21 130 250 24
    380.050-0800.01 5 800 1280 30 365 285 275 205 22 21 130 250 32
